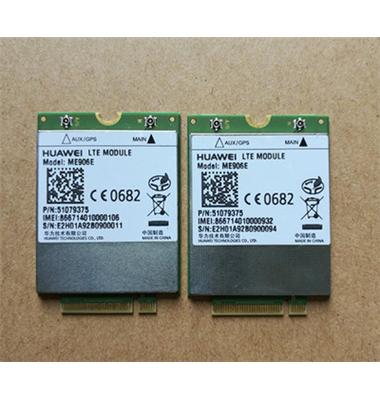

Huawei ME906E 4G Wireless Module is a new Huawei LTE module with NGFF interface, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20, Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA for Europe/Asia network coverage. It has low power consumption, support for Global Navigation Satellite System (GNSS, GLONASS) and European carrier certifications enabling easier and more flexible design and integration into end devices. Huawei ME906E Module is very similar to Huawei ME906C Module.
Huawei ME906E 4G Wireless Module is a new Huawei LTE module with NGFF interface, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20, Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA for Europe/Asia network coverage. It has low power consumption, support for Global Navigation Satellite System (GNSS, GLONASS) and European carrier certifications enabling easier and more flexible design and integration into end devices. Huawei ME906E Module is very similar to Huawei ME906C Module.
Huawei ME906E 4G Wireless Module is a new Huawei LTE module with NGFF interface, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20, Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA for Europe/Asia network coverage. It has low power consumption, support for Global Navigation Satellite System (GNSS, GLONASS) and European carrier certifications enabling easier and more flexible design and integration into end devices. Huawei ME906E Module is very similar to Huawei ME906C Module.
Data Features:
* GPRS/EDGE: Multi-slot Class 12
* WCDMA PS: UL (384 kbps)/ DL (384 kbps)
* DC-HSPA+ :UL (5.76 Mbps)/DL (42 Mbps)
* LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)
Huawei ME906E Module Technical Specifications:
* LTE (FDD) B1/B2/B3/B5/B7/B8/B20
* Quad-band DC-HSPA+/HSPA+/HSPA/UMTS 2100/1900/900/850 MHz
* Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz
* GNSS GPS L1: 1575.42 MHz Glonass L1: 1602 MHz
* Receive diversity DC-HSPA+/HSPA+/HSPA/UMTS 2100/1900/900/850 MHz MIMO HSPA+/DC-HSPA+ DL 2*2 MIMO LTE: DL 2*2 MIMO
* Max. transmitter power WCDMA/HSPA+:+24dBm (Power Class 3) GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1) GSM/GPRS 900M/850MHz: +33dBm (Power Class 4) EDGE 1900MHz/1800MHz: +26dBm (Power Class E2) EDGE 900M/850MHz: +27dBm (Power Class E2) LTE:Accorded with 3GPP TS 36.101 R8 Class 3(23dBm)
* Control via AT commands 3GPP TS 27.007 and TS 27.005 Huawei extended AT command
* SIM card supply voltage 1.8V/3.0 V UICC (SIM/UICC/UIM), ISIM supported
* Supply voltage range 3.135V~4.4V (3.3 V recommended)
* Temperature range Normal operation: -10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C
* Humidity: 5% - 95%
* Dimensions: 42 mm x 30 mm x 2.3 mm
* Weight: <6g
* OS: Windows 7 / Windows 8 / Android 4.0
Interfaces:
* Antenna interfaces x 2
* NGFF Socket 2
- USB 2.0 interface high speed
- Power supply
- UICC interface
Approvals & Certifications
* CE
* FCC
* GCF
* RoHS Compliant/ Halogen free
* Operator TA: Vodafone, Telefonica, Telstra, TMO
Additional Features
* GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass
* SIM Hotswap
* IPV6
* BodySAR
* Ultrabook feature support(ACT,QC, WiFi Offload , DPTF)
* Tunable Antenna
