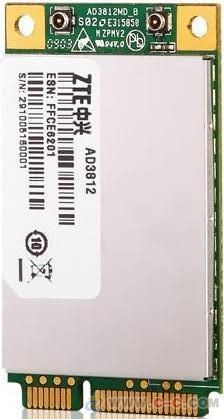

AD3812
General Features
Frequency Bands WCDMA (UMTS) Tri Band:850/1900/2100MHz
GSM Quad Band:850/900/1800/1900MHz
Dimensions 51.0×30.0×4.4mm
Weight 11g
Operating Temperature Range -30℃~+75℃
Storage Temperature Range -40℃~+80℃
Performance
Operating Voltage Range 3.3V~4.2V/Typical: 3.7V
TX Power  UMTS/HSPA: Class 3 (0.25W)
EDGE850/900: Class 12 (0.5W)
EDGE1800/1900: Class 12 (0.4W)
GSM850/900: Class 4 (2W)
GSM1800/1900: Class 1 (1W)
RX Sensitivity -106.5dBm
Interfaces
Connector Mini PCI-Expresscard
Antenna U.FL-R-SMT 50Ω Antenna Connector
Integrated Full Duplex UART Antenna Solder Pad
USB USB 2.0 Full Speed/Multi Channels
SIM Card Interface SIM Card Interface: 1.8V/3.0V
