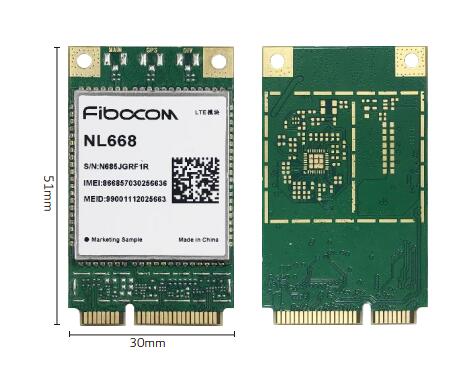

NL668-LA

NL668-LA

基本特性

Package
LCC+LGA
Dimension (mm)
32.0*29.0*2.4
LTE FDD
B1/2/3/4/5/7/8/12/17/28/66
LTE TDD
B38/40
WCDMAB1/2/3/4/5/8
TD-SCDMA
NA
EVDONA
CDMA2000 1XNA
GSM/GPRS/EDGE850/900/1800/1900MHz
Power Supply
3.3V - 4.4V (Typical 3.8V)
Operating Temp
-30°C ~ +75°C
Extended Temp
-40°C - +85°C

传输速率

LTE FDD (Mbps)
150 (DL)/ 50 (UL)
LTE TDD (Mbps)
130(DL)/ 30.5(UL)
DC-HSPA+(Mbps)
42(DL)/ 5.76(UL)
HSPA/HSPA+(Mbps)
NA
WCDMA(kbps)384 (DL)/ 384 (UL)
TD-SCDMA (Mbps)
NA
EVDO(Mbps)
NA
CDMA2000 1X(Kbps)
NA
EDGE(Kbps)
296(DL)/ 236.8(UL)
GPRS(Kbps)
107(DL)/ 85.6(UL)

功能

eSIMNA
Remote SIMNA
eCALL
Optional
OpenCPUOptional
MUX
●
Jamming Detection
NA
USSD
●
STK
NA
LBS
●
FOTA
DFOTA
OS Drivers
Linux/Windows/Android
GNSS
NA
MMSNA
CSDNA
TTS
●
SMS
●
Analog AudioNA
Digital Audio●
Voice Code●
Audio Play/Record●
Protocols
TCP/UDP(S)/HTTP(S)/FTP(S)/IPv4/IPv6/SSL/TLS/MQTT/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN

接口

SIMx1, 1.8V/ 3.0V
USBx1,USB2.0
PCIeNA
UARTx2
SPI●
ADCx2
GPIO●
SDIO●
PCM●
SGMII●

认证

RegulationRoHS/FCC/ANATEL
OperatorNA
IndustryHF


0.00
0.00


基本特性

Package
LCC+LGA
Dimension (mm)
32.0*29.0*2.4
LTE FDD
B1/2/3/4/5/7/8/12/17/28/66
LTE TDD
B38/40
WCDMAB1/2/3/4/5/8
TD-SCDMA
NA
EVDONA
CDMA2000 1XNA
GSM/GPRS/EDGE850/900/1800/1900MHz
Power Supply
3.3V - 4.4V (Typical 3.8V)
Operating Temp
-30°C ~ +75°C
Extended Temp
-40°C - +85°C

传输速率

LTE FDD (Mbps)
150 (DL)/ 50 (UL)
LTE TDD (Mbps)
130(DL)/ 30.5(UL)
DC-HSPA+(Mbps)
42(DL)/ 5.76(UL)
HSPA/HSPA+(Mbps)
NA
WCDMA(kbps)384 (DL)/ 384 (UL)
TD-SCDMA (Mbps)
NA
EVDO(Mbps)
NA
CDMA2000 1X(Kbps)
NA
EDGE(Kbps)
296(DL)/ 236.8(UL)
GPRS(Kbps)
107(DL)/ 85.6(UL)

功能

eSIMNA
Remote SIMNA
eCALL
Optional
OpenCPUOptional
MUX
●
Jamming Detection
NA
USSD
●
STK
NA
LBS
●
FOTA
DFOTA
OS Drivers
Linux/Windows/Android
GNSS
NA
MMSNA
CSDNA
TTS
●
SMS
●
Analog AudioNA
Digital Audio●
Voice Code●
Audio Play/Record●
Protocols
TCP/UDP(S)/HTTP(S)/FTP(S)/IPv4/IPv6/SSL/TLS/MQTT/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN

接口

SIMx1, 1.8V/ 3.0V
USBx1,USB2.0
PCIeNA
UARTx2
SPI●
ADCx2
GPIO●
SDIO●
PCM●
SGMII●

认证

RegulationRoHS/FCC/ANATEL
OperatorNA
IndustryHF


基本特性

Package
LCC+LGA
Dimension (mm)
32.0*29.0*2.4
LTE FDD
B1/2/3/4/5/7/8/12/17/28/66
LTE TDD
B38/40
WCDMAB1/2/3/4/5/8
TD-SCDMA
NA
EVDONA
CDMA2000 1XNA
GSM/GPRS/EDGE850/900/1800/1900MHz
Power Supply
3.3V - 4.4V (Typical 3.8V)
Operating Temp
-30°C ~ +75°C
Extended Temp
-40°C - +85°C

传输速率

LTE FDD (Mbps)
150 (DL)/ 50 (UL)
LTE TDD (Mbps)
130(DL)/ 30.5(UL)
DC-HSPA+(Mbps)
42(DL)/ 5.76(UL)
HSPA/HSPA+(Mbps)
NA
WCDMA(kbps)384 (DL)/ 384 (UL)
TD-SCDMA (Mbps)
NA
EVDO(Mbps)
NA
CDMA2000 1X(Kbps)
NA
EDGE(Kbps)
296(DL)/ 236.8(UL)
GPRS(Kbps)
107(DL)/ 85.6(UL)

功能

eSIMNA
Remote SIMNA
eCALL
Optional
OpenCPUOptional
MUX
●
Jamming Detection
NA
USSD
●
STK
NA
LBS
●
FOTA
DFOTA
OS Drivers
Linux/Windows/Android
GNSS
NA
MMSNA
CSDNA
TTS
●
SMS
●
Analog AudioNA
Digital Audio●
Voice Code●
Audio Play/Record●
Protocols
TCP/UDP(S)/HTTP(S)/FTP(S)/IPv4/IPv6/SSL/TLS/MQTT/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN
