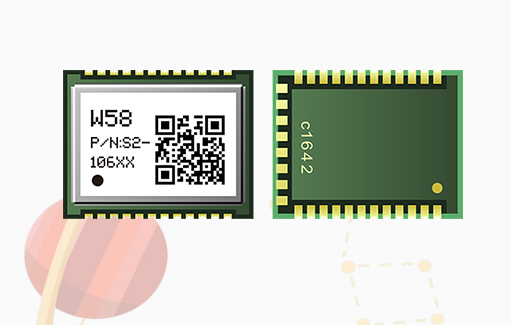

W58

W58

Wi-Fi & BT Module with Ultra-compact LCC Package

W58 is a small, low-power, low-cost Wi-Fi & BT module based on Qualcomm QCA-9377-3 chipset.

The module can be used in car networking, wireless routing, and other wireless terminals.

The module conforms to IEEE Standard 802.11b/g/n.

The module is integrated with the baseband, PA and 2.4G RF transceivers, and supports data communication between SIMCom LTE CAT-4 modules

(SIM7600x-H series module) through SDIO3.0 interface.


0.00
0.00

Wi-Fi & BT Module with Ultra-compact LCC Package

W58 is a small, low-power, low-cost Wi-Fi & BT module based on Qualcomm QCA-9377-3 chipset.

The module can be used in car networking, wireless routing, and other wireless terminals.

The module conforms to IEEE Standard 802.11b/g/n.

The module is integrated with the baseband, PA and 2.4G RF transceivers, and supports data communication between SIMCom LTE CAT-4 modules

(SIM7600x-H series module) through SDIO3.0 interface.


产品优势

• Ultra-compact LCC Package Wi-Fi & BT Module

• Support BT 3.0 and BLE 4.1

• Support IEEE Standard protocol of 802.11b/g/n

• Wide operation temperature range (-40°C to +85°C)

• Max Access Point is 30

产品详情
General features
Frequency band: 2.412 ~ 2.484 GHz
Supply Voltage Range: 3.2V~ 3.4V , 3.3V Typ.
Temperature Range: -40℃ to +85℃
Dimension: 16.6 *13.0*2.1 mm
Weight: 1g
WLAN Standard: IEEE 802.11 b/g/n
Modulation Mode: CCK, BPSK,QPSK,16QAM,64QAM
Encryption Mode: WEP,TKIP,AES,WPA-PSK,WPA2-PSK
AP (Max Access Point): 30
Operator Mode: AP, STA
BT Protocol: SPP (BT 3.0), GATT (BLE 4.1)
Max Date Rate
802.11b： 11Mbps
802.11g： 54Mbps
802.11n_HT20： 65Mbps
802.11n_HT40： 135Mbps
BT 4.1： 24Mbps
Transmitting Power
802.11b/11Mbps： 18dBm
802.11g/54Mbps： 15dBm
802.11n_HT20/65Mbps： 15dBm
802.11n_HT40/135Mbps： 14dBm
Rx Sensitivity
802.11b/1Mbps： -95dBm
802.11b/11Mbps： -94dBm
802.11g/6Mbps： -91dBm
802.11g/54Mbps： -78dBm
802.11n_HT20 MCS0： -90dBm
802.11n_HT40 MCS7： -75dB
