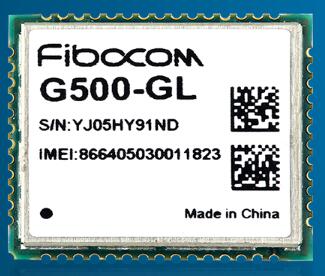

G500-GL


基本特性

? GSM: 850/900/1800/1900MHz


? A-GPS/ GPS/BDS/GLONASS


? LCC+LGA: 18.7 x 16.0 x 2.25mm


? Operating temperature: -40℃ ~ +85℃


? Storage Temperature: -45 ℃~ +90℃


? Operating Voltage: 2.8V~3.6V, Typical 3.3V


? AT Command Set: FIBOCOM proprietary AT commands/GSM 07.05/GSM 07.07/GSM 07.10


? TX Power: 850/900 MHz:33dBm±2dB 1800/1900 MHz:30dBm±2dB


? RX Sensitivity: 850/900MHz: -107.5 dBm 1800/1900MHz: -107.5 dBm



0.00
0.00


基本特性

? GSM: 850/900/1800/1900MHz


? A-GPS/ GPS/BDS/GLONASS


? LCC+LGA: 18.7 x 16.0 x 2.25mm


? Operating temperature: -40℃ ~ +85℃


? Storage Temperature: -45 ℃~ +90℃


? Operating Voltage: 2.8V~3.6V, Typical 3.3V


? AT Command Set: FIBOCOM proprietary AT commands/GSM 07.05/GSM 07.07/GSM 07.10


? TX Power: 850/900 MHz:33dBm±2dB 1800/1900 MHz:30dBm±2dB


? RX Sensitivity: 850/900MHz: -107.5 dBm 1800/1900MHz: -107.5 dBm



接口

? SIM Card: 1.8V/3.0V x 1


? UART x 4


? ADC x 1


? GPIO


? Antenna: GSM & GNSS




认证

? CE-RED/RoHS


? SRRC/NAL/CCC






传输速率

? Multi-slot class 12


? GPRS: Max 85.6Kbps (DL)/85.6Kbps (UL)


? Coding Scheme CS1-CS4




功能

? TCP/UDP/HTTP(S)/FFS/SSL/TLS/PPP/MQTT/ FTP/NTP/PPP/Cell ID/LBS


? GNSS ? DFOTA


? OpenCPU
