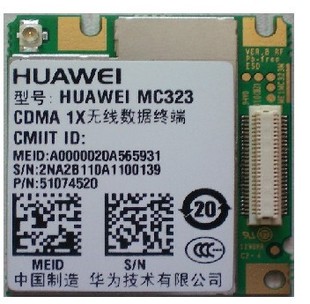

MC323

0.00
0.00

product title MC323 Mandatory
target market Global, 1st Market: F-S Mandatory
Dimensions: Target:32.5*35*3.05mm Recommend
Weight <10g Recommend
Module Type External interface UART Mandatory
Technical Standard CDMA2000 1X RTT Mandatory
Operating Frequency
Band Class 0: 800MHz
(RX: 869 ~ 894MHz TX: 824 ~ 849MHz)
Band Class 1: 1900MHz
(RX: 1930.0~1989.95, TX: 1850.0~1909.95)
Recommend
Data Rate UL153.6kbps/DL 153.6kbps Mandatory
Static receiving sensitivIiSty95 A/B IS–2000 Mandatory
Max. transmitter
power
CDMA 800 MHz :+23 dBm(Power Class 3);
CDMA 1900 MHz +23 dBm(Power Class 2);
TBD
Maximum power
consumption Average power consumption <= 3.6W TBD
Power supply 3.3V~4.2V/1100mA TBD
Chipset Qualcomm QSC1110 Recommend
Antenna interface 50 Ohm antenna connector Mandatory
USIM/SIM standard 6 PIN SIM card interface Mandatory
driver Supporting Windows 2000 、Windows XP、Vista 、
Win7、Mac and Linux(2.6.18 later)
Mandatory
Software Interface
IS-707 AT command set and extended
AT command set
IS-683A compliant over-air download/update
capabilities
IS-683C PRL
Mandatory
SMS
1.SMS MO/MT
2.Monitor the paging channel for SMS messages during
hybrid operation.
3. Monitor the broadcast
paging channel for SMS messages
during hybrid operation.
Mandatory
Voice Mandatory
Data Service Mandatory
UART srpporting full-duplex UART Mandatory
Accessories User manual AT Command Manual
User Manual Mandatory
FCC Optional
CDG Optional
IOT Optional
Working Temperature -30 to 75° C Mandatory
Storage Temperature -40 to 90° C Mandatory
Humidity 5%~ 95% Mandatory
Environmental
Hardware
Certification
Function
MC323 Spec List
Date:2010-05-20
Revision Number:V1.0
Performance
&Protocol
