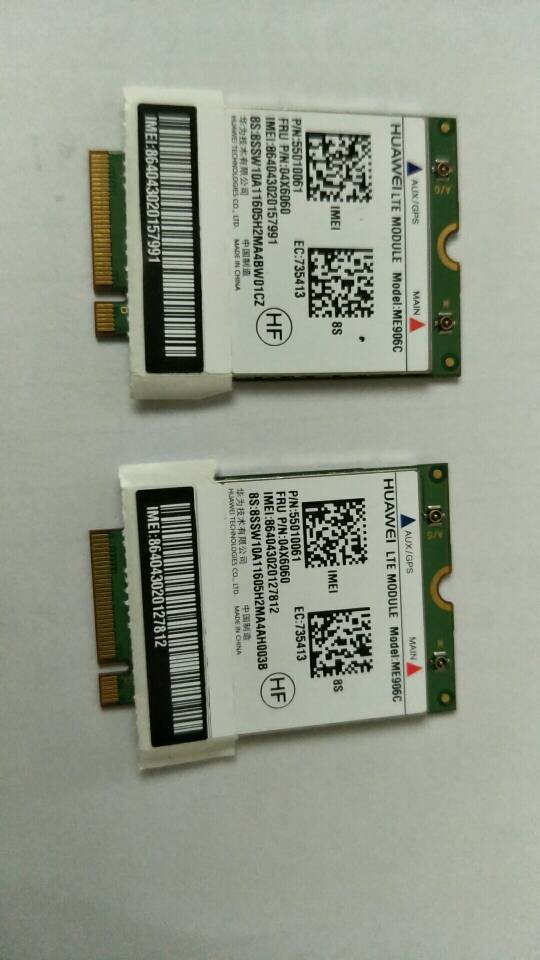

HUAWEI ME906C LTE M.2 Module  N EW PRODUCT!

1. Feature Description
Physical Features
Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm
Weight: about 6 g
Operating Bands
LTE TDD: B38, B39, B40, B41
LTE FDD: B1, B3, B8
HSPA+: B1, B2, B5, B8
TD-SCDMA: B34, B39
GSM/GPRS/EDGE: 900M/1800M/1900M
GPS (L1): 1575.42 MHz
GLONASS (L1): 1602 MHz
Operating Temperature
Normal operating temperature: –10°C to +55°C
Extended operating temperature[1]: –20°C to +70°C
Storage Temperature –40°C to +85°C
Power Voltage 3.135 V to 4.4 V (3.3 V is typical)
Application Interface
(75-pin Gold USIM (3.0 V or 1.8 V)
SIM_DET pin (USIM Hot Swap Detection)
USB 2.0 (High-Speed)
Power_On_Off pin
RESET# pin
LED# pin
W_DISABLE# pin
GPS_DISABLE# pin
Tunable Antenna control (4 GPIOs)
Wake_On_WWAN# pin
BodySAR_N pin
Power supply (5 pins)
Antenna
Connectors
MAIN and AUX (supports Diversity and GPS simultaneously)
SMS
Supports MO and MT
Supports formats of PDU
Point-to-point and cell broadcast
Data Services
GPRS: DL 85.6 kbps/UL 85.6 kbps
EDGE: DL 236.8 kbps/UL 236.8 kbps
WCDMA CS: DL 64 kbps/UL 64 kbps
WCDMA PS: DL 384 kbps/UL 384 kbps
HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
DC-HSPA+: DL 42 Mbps/UL 5.76 Mbps
LTE FDD: DL 100 Mbps/UL 50 Mbps @20M BW cat3
LTE TDD: DL 61 Mbps/UL 18 Mbps @20M BW cat3
TD-SCDMA PS: DL 384 kbps/UL 384 kbps:
TD-HSPA+: DL 4.2 Mbps/UL 2.2 Mbps
Operating System Windows 7/8/8.1, Android 4.0/4.1/4.2

2. RF bands of ME906C

Operating Band                  TX                                  RX
UMTS Band 1           1920 MHz–1980 MHz     2110 MHz–2170 MHz
UMTS Band 2           1850 MHz–1910 MHz     1930 MHz–1990 MHz
UMTS Band 5            824 MHz–849 MHz        869 MHz–894 MHz
UMTS Band 8            880 MHz–915 MHz        925 MHz–960 MHz
GSM 900                   880 MHz–915 MHz        925 MHz–960 MHz
GSM 1800(DCS)       1710 MHz–1785 MHz     1805 MHz–1880 MHz
GSM 1900(PCS)        1850 MHz–1910 MHz     1930 MHz–1990 MHz
LTE Band 1               1920 MHz–1980 MHz     2110 MHz–2170 MHz
LTE Band 3               1710 MHz–1785 MHz     1805 MHz–1880 MHz
LTE Band 8               880 MHz–915 MHz         925 MHz–960 MHz
LTE Band 38             2570 MHz–2620 MHz     2570 MHz–2620 MHz
LTE Band 39             1880 MHz–1920 MHz     1880 MHz–1920 MHz
LTE Band 40             2300 MHz–2400 MHz     2300 MHz–2400 MHz
LTE Band 41             2496 MHz–2690 MHz     2496 MHz–2690 MHz
TD-SCDMA Band 34  2010 MHz–2025 MHz     2010 MHz–2025 MHz
TD-SCDMA Band 39  1880 MHz–1920 MHz     1880 MHz–1920 MHz
GPS (L1)                   1574.42 MHz–1576.42 MHz
GLONASS (L1)           1597.55 MHz–1605.89 MHz
