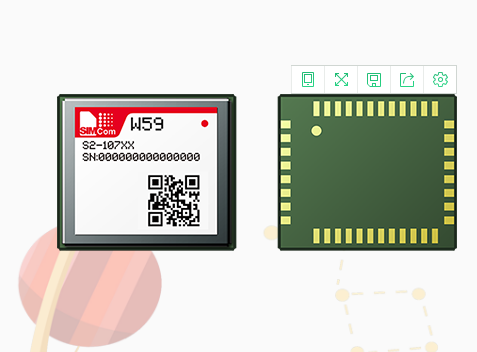

W59

Wi-Fi & BT Module

W59 is a small, low-power, low-cost Wi-Fi & BT module based on Qualcomm QCA-6574A-3 chipset. The module can be used in car networking, wireless

routing, and other wireless terminals. The module conforms to IEEE Standard 802.11a/b/g/n/ac. The module is integrated with the baseband, PA and 2.4G/5G RF transceivers, and supports data communication between SIMCom LTE CAT-4 module SIM7800 through SDIO3.0 interface.


0.00
0.00

Wi-Fi & BT Module

W59 is a small, low-power, low-cost Wi-Fi & BT module based on Qualcomm QCA-6574A-3 chipset. The module can be used in car networking, wireless

routing, and other wireless terminals. The module conforms to IEEE Standard 802.11a/b/g/n/ac. The module is integrated with the baseband, PA and 2.4G/5G RF transceivers, and supports data communication between SIMCom LTE CAT-4 module SIM7800 through SDIO3.0 interface.


产品优势

• Ultra-compact LCC Package Wi-Fi & BT Module

• Support BT 3.0 and BLE 4.2

• Support IEEE Standard protocol of 802.11a/b/g/n/ac

• Wide operation temperature range (-40°C to +85°C) • Max Access Point is 30

产品详情
General features
Frequency band: 2.412 ~ 2.484 GHz
5.17~5.825GHz
Supply Voltage Range: 3.2V~ 3.4V , 3.3V Typ. Temperature Range: -40℃ to +85℃
Dimension: 16 *18.3*2.3 mm
Weight: 1.2g
WLAN Standard: IEEE 802.11a/b/g/n/ac
Modulation Mode: DSSS,CCK, OFDM,BPSK,QPSK,16QAM,64QAM,256QAM
Encryption Mode: WEP,TKIP,AES,WPA-PSK,WPA2-PSK
AP (Max Access Point): 30
Operator Mode: AP, STA
BT Protocol: SPP (BT 3.0), GATT (BLE 4.2)

Max Date Rate
802.11b: 11Mbps
802.11g: 54Mbps
802.11n_HT20: 72.2Mbps
802.11n_HT40: 150Mbps
802.11ac_HT20: 86.7Mbps
802.11ac_HT40: 200Mbps
802.11ac_HT80: 433.3Mbps
BT 4.2:


Transmitting Power
802.11b/11Mbps: TBD
802.11g/54Mbps: TBD
802.11n_HT20/72.2Mbps: TBD
802.11n_HT40/150Mbps: TBD
802.11ac_HT20/86.7Mbps: TBD
802.11ac_HT40/200Mbps: TBD
802.11ac_HT80/433.3Mbps: TBD
BT 4.1/24Mbps: TBD

Rx Sensitivity
802.11b/11Mbps: TBD
802.11g/54Mbps: TBD
802.11n_HT20/72.2Mbps: TBD
802.11n_HT40/150Mbps: TBD
802.11ac_HT20/86.7Mbps: TBD
802.11ac_HT40/200Mbps: TBD
802.11ac_HT80/433.3Mbps: TBD
BT 4.1/24Mbps: TBD
