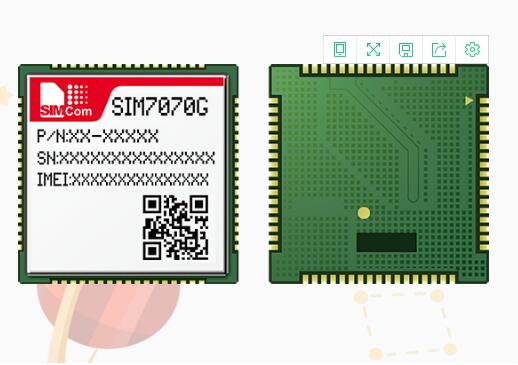

SIM7070G

CAT-M&NB-IoT Module

The SIM7070G is Multi-Band CAT-M, NB-IoT and GPRS module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..


0.00
0.00

CAT-M&NB-IoT Module

The SIM7070G is Multi-Band CAT-M, NB-IoT and GPRS module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..


产品优势

• With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7070G can extend battery life to 10 years.

• CAT-M, NB-IoT , GPRS triple mode

• The package of SIM7070G is compatible with SIM7000/SIM800F/SIM900

产品详情

Version:201912



General Features
Support Bands:
CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B2 6/B27/B28/B66/B85
CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B2 8/B66/B71/B85
LTE RF Power Class: 5 (Typ. 21dbm)
GSM/GPRS:
850/900/1800/1900MHz
Control Via AT Commands
Supply voltage range: 3.0V-4.6V
Operation temperature: -40°C to +85°C
Dimensions: 24X24X2.3mm
Weight: 2.9±0.2g

Data
Cat-M:
- Uplink: up to 1119Kbps Downlink: up to 589Kbps
NB-IoT:
- Uplink: up to 150Kbps Downlink: up to 136Kbps
EDGE:
- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps
GPRS:
- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps

Other Features
TCP/UDP HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT Ayla Cloud
Firmware update via USB
FOTA
EAT

Interfaces
UART
SIM card
PCM/I2S
SPI
I2C
GPIO
ADC
USB
Embedded SIM (optional)
