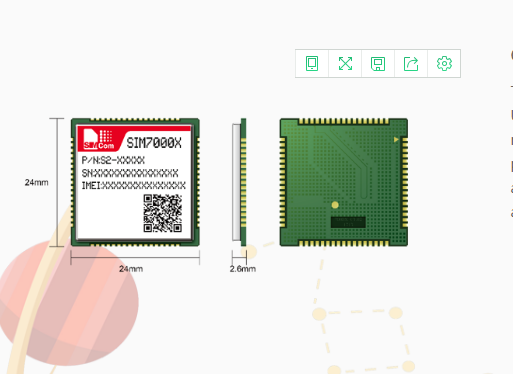

SIM7000X

Cat-M/NB-IoT/GSM

The SIM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. The SIM7000 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.


0.00
0.00

Cat-M/NB-IoT/GSM

The SIM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. The SIM7000 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.


产品优势

●   With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7000 series can extend battery life to 10 years

●   SIM7000 series provides deeper coverage enhancement compared to GSM

●   The form factor and AT commands of the SIM7000 series are compatible with SIM900 and SIM800F

产品详情


Product

SIM7000G

SIM7000E

SIM7000A

SIM7000JC

SIM7000C

Form factor

LCC, 68PIN

LCC, 68PIN

LCC, 68PIN

LCC, 68PIN

LCC, 68PIN

Dimensions(mm)

24*24*2.6

24*24*2.6

24*24*2.6

24*24*2.6

24*24*2.6

Frequency Bands

Cat-M

B1/B2/B3/B4/B5/B8/B12/B13/B17/

B18/B19/B20/B25/B26/B28/B39

B3/B5/B8/B20/B28

B2/B4/B12/B13

B1/B3/B5/B8/B18/B19/B26

B1/B3/B5/B8

Cat-NB

B1/B2/B3/B4/B5/B8/B12/B13/B17/

B18/B19/B20/B25/B26/B28

B3/B5/B8/B20/B28

B2/B4/B12/B13

B1/B3/B5/B8/B18/B19/B26

B1/B3/B5/B8

GSM

850/900/1800/1900MHz

900/1800MHz





900/1800MHz

Temperature

-40℃ ~ +85℃

-40℃ ~ +85℃

-40℃ ~ +85℃

-40℃ ~ +85℃

-40℃ ~ +85℃

Electrical Features









Supply Voltage Range(V)

3.0~ 4.3

3.0~ 4.3

3.0~ 4.3

3.0~ 4.3

3.0~ 4.3

Power Consumption

Power Off(uA)

7

7

7

7

7

PSM(uA)

9

9

9

9

9

Sleep(mA)

1

1

1

1

1

Idle(mA)

11

11

11

11

11

Data Transfer









Cat-M(Kbps)

300(DL)/375(UL)

300(DL)/375(UL)

300(DL)/375(UL)

300(DL)/375(UL)

300(DL)/375(UL)

Cat-NB(Kbps)

34(DL)/66(UL)

34(DL)/66(UL)

34(DL)/66(UL)

34(DL)/66(UL)

34(DL)/66(UL)

EGPRS(Kbps)

85.6(DL)/85.6(UL)

85.6(DL)/85.6(UL)





85.6(DL)/85.6(UL)

Software Features









Protocol

TCP/UDP/LWM2M/COAP/MQTT/

FTP/HTTP/TLS/DTLS/NTP

TCP/UDP/LWM2M/COAP/MQTT/

FTP/HTTP/TLS/DTLS/NTP

TCP/UDP/LWM2M/COAP/MQTT/

FTP/HTTP/TLS/DTLS/NTP

TCP/UDP/LWM2M/

COAP/MQTT/FTP/

HTTP/TLS/DTLS/NTP

TCP/UDP/LWM2M/

COAP/MQTT/FTP/

HTTP/TLS/

DTLS/NTP

FOTA

Embedded AT

Firmware Upgrade

USB/FOTA

USB/FOTA

USB/FOTA

USB/FOTA

USB/FOTA

Interfaces









SIM Card

1.8V/3.0V

1.8V/3.0V

1.8V/3.0V

1.8V/3.0V

1.8V/3.0V

UART

USB

PCM

ADC

I2C

Certification









Regulatory

FCC/IC/CE/3C/GCF/RoHS/REACH

CE/RCM/IMDA/GCF/RoHS/REACH

FCC/IC/GCF/RoHS/REACH

JATE/TELEC/

RoHS/REACH

CCC/NAL/SRRC/

RoHS/REACH

Carrier

Deutsche Telekom /ORANGE*/

PTCRB

TELSTRA/VDF*/ORANGE*/TIM*/

GCF/Deutsche Telekom

AT&T/VERIZON/ROGERS*/PTCRB/GCF

KD
